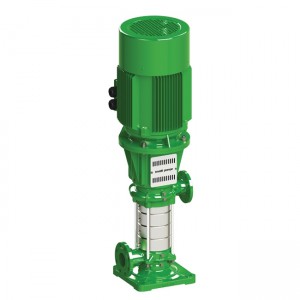

Pumpar vertikala flerstegs elektriska pumpar ROVATTI ME50KVX100-100
Pumpar vertikala flerstegs elektriska pumpar ROVATTI ME50KVX100-100

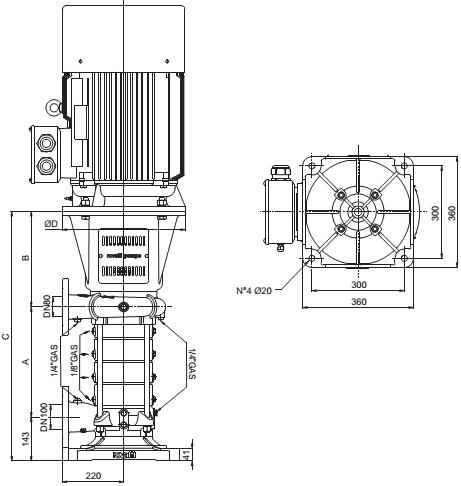

| ME50KVX100-100 - 2 Poler | |||||||
| Pump | IEC | A | B |
C |
D | Pump Vikt | Motor Vikt |
| ME30KVX100-100/2 | • |
176 | 312 | 631 | 350 | 97 | * |
| ME35KVX100-100/2 | • | 176 | 312 | 631 | 400 | 99 | * |
| ME40KVX100-100/2 | • | 176 | 312 | 631 | 400 | 99 | * |
| ME50KVX100-100/2 | • | 176 | 312 | 631 | 400 | 99 | * |
| ME60KVX100-100/3 | • | 261 | 312 | 715 | 450 | 111 | * |
| ME75KVX100-100/3 | • | 261 | 342 | 745 | 550 | 121 | * |
| ME75KVX100-100/4 | • | 345 | 342 | 830 | 550 | 131 | * |

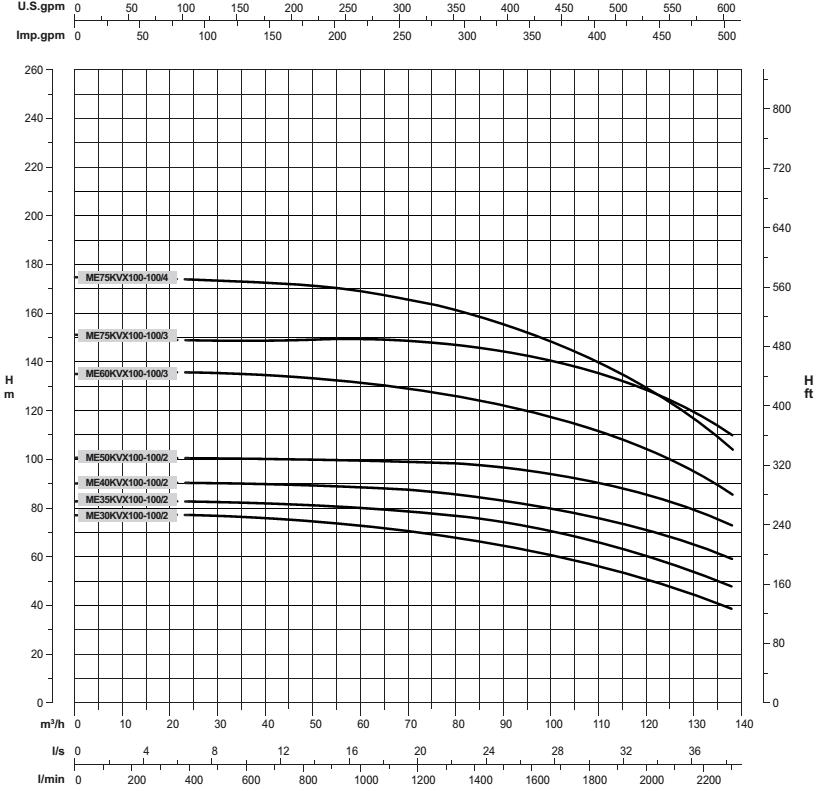

| Pumptyp | Motoreffekt | Kapacitet | |||||||||
| [l/min] | 0 | 400 | 1000 | 1500 | 1600 | 1800 | 2000 | 2300 | |||
| [m3/h] | 0 | 24 | 60 | 90 | 96 | 108 | 120 | 138 | |||
| IEC | [kW] | [l/s] | 0 | 6,7 | 16,7 | 25 |
26,7 |
30 |
33,3 | 38,3 | |
| ME30KVX100-100/2 | • | 22 | Hm | 77 | 77 | 73 | 65 | 62,5 | 57 | 50,5 | 38 |
| ME35KVX100-100/2 | • | 26 | Hm | 83 | 83 | 80 | 74 | 72 | 67 | 60,5 | 48 |
| ME40KVX100-100/2 | • | 30 | Hm | 90 | 90,5 | 88,5 | 83,5 | 82 | 77 | 71 | 59 |
| ME50KVX100-100/2 | • | 37 | Hm | 100,5 | 100 | 100 | 97 | 95,5 | 91,5 | 85,5 | 73 |
| ME60KVX100-100/3 | • | 45 | Hm | 135 | 135 | 131,5 | 123 | 120 | 113 | 103,5 | 86 |
| ME75KVX100-100/3 | • |
55 | Hm | 150,5 | 150 | 148 | 145 | 143 | 137,5 | 128,5 | 110 |
| ME75KVX100-100/4 | • | 55 | Hm | 174,5 | 174 | 168,5 | 156 | 152 | 142 | 129 | 104,5 |
Kurvor fastställda för vätsketäthet 1000 kg/m³
Viskositet 1 mm²/s
Temperatur 20°C,
η% Pump effektivitet, Y Ventilförlust returnerar inte.
