Pump elektriska vertikala flerstegs MEKV50T-24
Föreställningar a 50Hz, 2 Poler

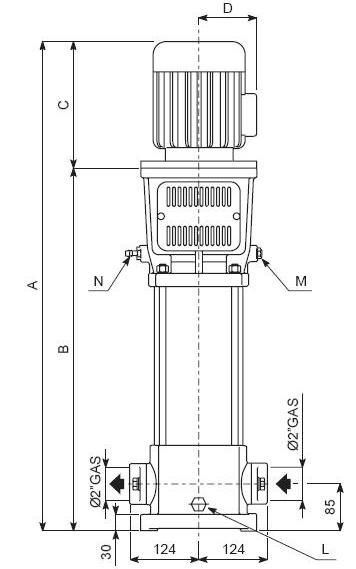

M =pumpfyllning =3/8"GAS, N=Dropp avloppet=3/8"GAS,
L=Pump avlopp= 1/4"GAS
Mått och vikter kan ändras beroende på vilken typ av motor
Pump
|
IEC
|
KW |
HP
|
| ME3KV50T-24/3 |
|
2,2 |
3 |
| ME4KV50T-24/4 |
• |
3 |
4 |
| ME5KV50T-24/5 |
• |
4 |
5,5 |
| ME7KV50T-24/8 |
|
5,5 |
7,5 |
| ME7KV50T-24/8 |
• |
5,5 |
7,5 |
| ME10KV50T-24/10 |
• |
7,5 |
10 |
| ME12KV50T-24/13 |
|
9,2 |
12,5 |
| ME12KV50T-24/13 |
• |
11 |
15 |
| ME15KV50T-24/16 |
|
11 |
15 |
| ME15KV50T-24/16 |
• |
11 |
15 |
| ME17KV50T-24/17 |
|
13 |
17,5 |
| ME17KV50T-24/17 |
• |
15 |
20 |
| ME20KV50T-24/20 |
• |
15 |
20 |
| ME25KV50T-24/25 |
• |
18,5 |
25 |
| Pump |
Motor
effekt |
[l/min] |
0 |
150 |
300 |
400 |
450 |
500 |
550 |
600 |
| [m3/h] |
0 |
9 |
18 |
24 |
27 |
30 |
33 |
36 |
| [kW] |
[l/s] |
0 |
2,5 |
5 |
6,7 |
7,5 |
8,3 |
9,2 |
10 |
| ME3KV50T-24/3 |
2,2 |
Hm |
32 |
25 |
19,5 |
15,5 |
12 |
- |
- |
- |
| ME4KV50T-24/4 |
3 |
45 |
36,5 |
31,5 |
30 |
27,5 |
23 |
17,5 |
10,5 |
| ME5KV50T-24/5 |
4 |
56,5 |
47 |
39,5 |
38 |
34,5 |
29 |
22 |
13,5 |
| ME7KV50T-24/8 |
5,5 |
90,5 |
73 |
64 |
61 |
55 |
46 |
34,5 |
21,5 |
| ME7KV50T-24/8 |
5,5 |
90,5 |
73 |
64 |
61 |
55 |
46 |
34,5 |
21,5 |
| ME10KV50T-24/10 |
7,5 |
110 |
89 |
78 |
73,5 |
67,5 |
57 |
44,5 |
29,5 |
| ME12KV50T-24/13 |
9,2 |
146 |
120 |
106 |
99,5 |
90,5 |
76 |
59,5 |
42 |
| ME12KV50T-24/13 |
11 |
146 |
120 |
106 |
99,5 |
90,5 |
76 |
59,5 |
42 |
| ME15KV50T-24/16 |
11 |
178 |
145 |
126 |
119 |
108 |
91 |
71,5 |
48 |
| ME15KV50T-24/16 |
11 |
178 |
145 |
126 |
119 |
108 |
91 |
71,5 |
48 |
| ME17KV50T-24/17 |
13 |
187 |
154 |
133 |
123 |
114 |
96,5 |
75,5 |
52 |
| ME17KV50T-24/17 |
15 |
187 |
154 |
133 |
123 |
114 |
96,5 |
75,5 |
52 |
| ME20KV50T-24/20 |
15 |
227 |
186 |
164 |
156 |
143 |
122 |
96,5 |
67,5 |
| ME25KV50T-24/25 |
18,5 |
283 |
233 |
205 |
194 |
179 |
153 |
121 |
85 |
Yttermått i mm och vikt i kg
Pump
|
IEC
|
A |
B
|
C |
D |
Pump |
Motor |
| ME3KV50T-24/3 |
|
* |
591 |
* |
* |
34 |
* |
| ME4KV50T-24/4 |
• |
* |
634 |
* |
* |
37 |
* |
| ME5KV50T-24/5 |
• |
* |
738 |
* |
* |
39 |
* |
| ME7KV50T-24/8 |
|
* |
732 |
* |
* |
48 |
* |
| ME7KV50T-24/8 |
• |
* |
732 |
* |
* |
48 |
* |
| ME10KV50T-24/10 |
• |
* |
836 |
* |
* |
48 |
* |
| ME12KV50T-24/13 |
|
* |
983 |
* |
* |
62 |
* |
| ME12KV50T-24/13 |
• |
* |
983 |
* |
* |
62 |
* |
| ME15KV50T-24/16 |
|
* |
1179 |
* |
* |
72 |
* |
| ME15KV50T-24/16 |
• |
* |
1179 |
* |
* |
72 |
* |
| ME17KV50T-24/17 |
|
* |
1228 |
* |
* |
79 |
* |
| ME17KV50T-24/17 |
• |
* |
1228 |
* |
* |
79 |
* |
| ME20KV50T-24/20 |
• |
* |
1375 |
* |
* |
64,5 |
* |
| ME25KV50T-24/25 |
• |
|
1620 |
* |
* |
78 |
* |
Föreställningar a 50Hz, 2 Poler
η %= pumpeffektivitet

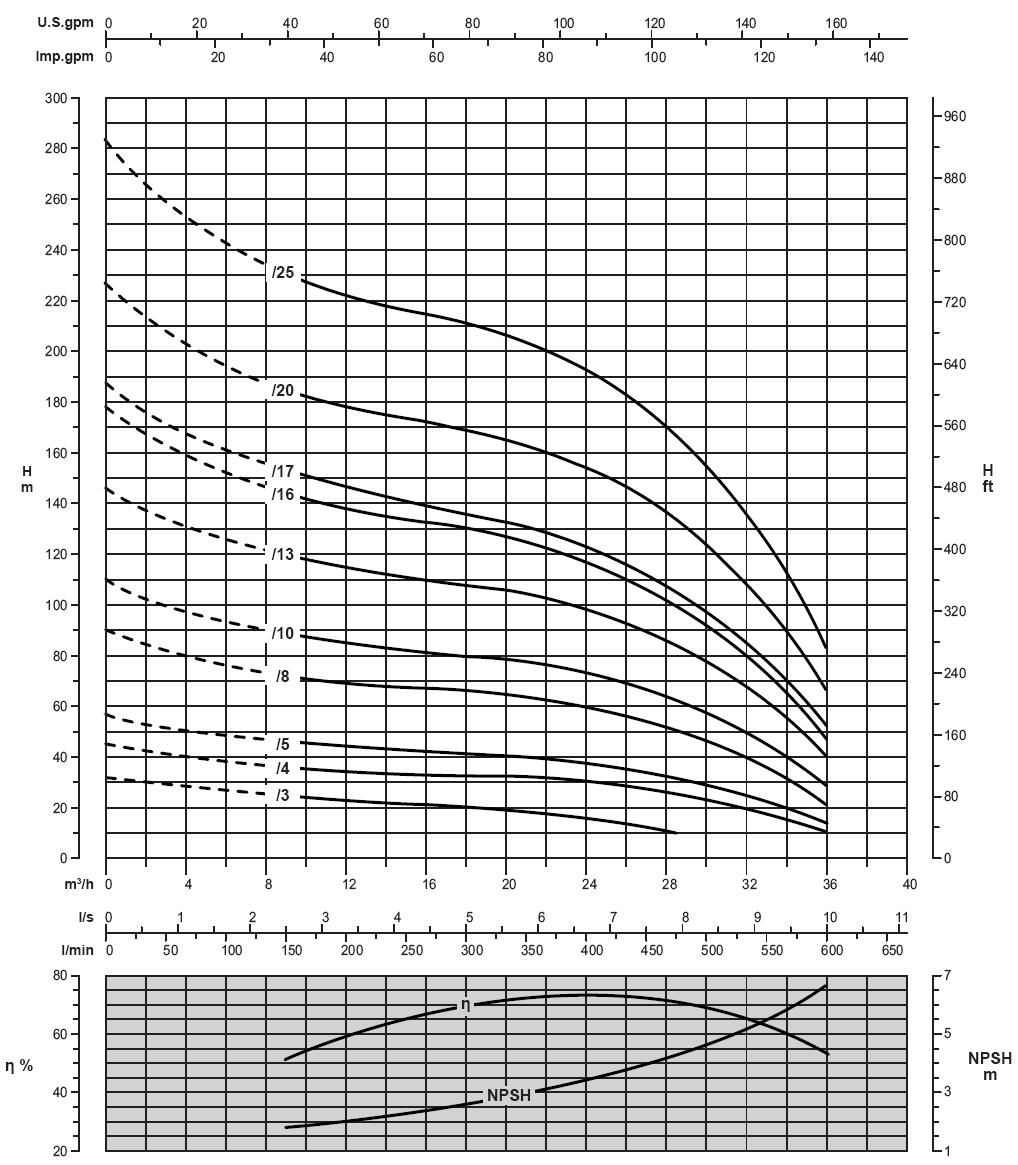

Kurvor som fastställts för vätskedensitet 1000 kg/m3 - viskositet 1 mm2/s - Temperatur 20°C
