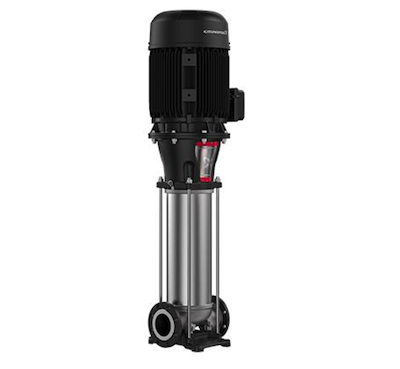

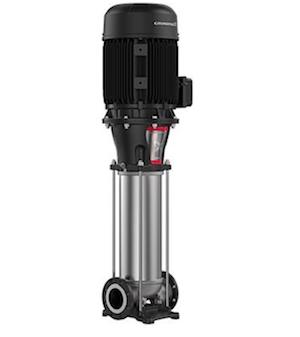

Pump centrifugalpump vertikal flerstegs Grundfos CRN 125 till CRN 155
Pump centrifugalpump vertikal flerstegs Grundfos CRN 125 till CRN 155
| Pump centrifugalpump vertikal flerstegs Grundfos CRN 125 till CRN 155 | |||||||
| Serie | Fas/ [Hz] | Motoreffekt ( kW**) |
Flöde | Höjd | Anslutning *) | Märkström (A) |
|
| m3/h | m | DN | PN | ||||
| CRN 120-2-1 | 3/50 | 18,5 | 126,7 | 40,6 | 150 | 16 |
34,5-32,5/ 20,0-18,8 A |
| CRN 120-4-1 | 3/50 | 30 | 151,9 | 51,99 | 56,0-51,0/ 32,0-29,5 A | ||
| CRN 120-5-1 | 3/50 | 45 | 120,1 | 107,3 | 81,0-74,0/ 47,0-43,0 A | ||
| CRN 120-6 | 3/50 | 37 | 123,1 | 86,76 | 68,0-63,0/ 39,0-36,0 A | ||
| CRN 120-1A | 3/50 | 55 | 122,8 | 133,1 | 99,0-90,0/ 57,0-52,0 A | ||
| CRN 120-2 | 3/50 | 11 | 169 | 15,63 | 20,8-19,8/ 12,0-11,8 A | ||
| CRN 120-3 | 3/50 | 11 | 150 | 19,71 | 20,8-19,8/12,0-11,8 A | ||
| CRN 150-3-2 | 3/50 | 55 | 122 | 132,2 | 20,8-19,8/ 12,0-11,8 A | ||
| CRN 150-1-1 | 3/50 | 11 | 130,9 | 23,1 | 56,0-51,0/ 32,0-29,5 A | ||
| CRN 150-2-1 | 3/50 | 22 | 126,2 | 48,01 | 39,5/22,8 A | ||
| CRN 150-3 |
3/50 | 22 | 154,3 | 37,7 | 39,5/22,8 A | ||
| CRN 150-4-1 | 3/50 | 37 | 152,3 | 66,26 | 68,0-63,0/ 39,0-36,0 A | ||
| CRN 150-5-2 | 3/50 | 45 | 152,3 | 84,02 | 81,0-74,0/ 47,0-43,0 A | ||
| CRN 150-6 | 3/50 | 55 | 154,2 | 103 | 99,0-90,0/ 57,0-52 A | ||
| CRN 155-1 | 3/50 | 75 | 153,8 | 140,7 | 135-125/78,0-72,0 A | ||
Notera
*) Motoreffekt 0,37-3,0 kW = 3x220-240 D/380-415 Y
Motoreffekt 4-11 kW = 3x380-415 D
Motoreffekt 15 kW och större = 3x380-415 D/660-690 Y
